Product Details:
|
| Frame Material: | Aluminum Alloy | Opening Pattern: | VERTICAL |
|---|---|---|---|
| Screen Netting Material: | Stainless Steel/Nylon/Fiberglass/Plast | Warranty: | More Than 5 Years |
| Material: | Aluminum Alloy, Aluminum Alloy+Glass+Accessories | Feature: | Magnetic Screen, Folding Screen |
| Open Style: | Swing | Function: | Soundproof |
| After-sale Service: | Return And Replacement, Onsite Inspection, Online Technical Support, Onsite Training, Onsite Installation, Free Spare Parts | Project Solution Capability: | Total Solution For Projects |
| Application: | Workshop/Laundry/Farmhouse/Supermarket/Courtyard | Design Style: | Modern |
| Curtain Type: | Sliding/Houver/Casement/Roller Shutter | Product Name: | Aluminum Awning Window |
| Hardware: | China Brand | Surface Treatment: | Powder Coated Smooth Finished |
| Glass Type: | Single\double\tempering\floating\stained\low-e | Packing: | Wood Crate/Multi-layers Protection Packaging/Wood Crate Box |
| Window Type: | Almunium Windows | Advantage: | No Deformation/Heatproof/Durab |
| Glass Color: | Color Customized/Tinted/Tea Colo | Usage: | House Building |
| Port: | Qingdao,Tianjin,Ningbo,Shagnhai,Guagnzhou,Shenzhen, |

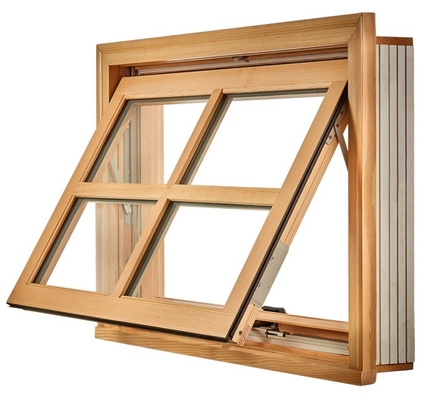

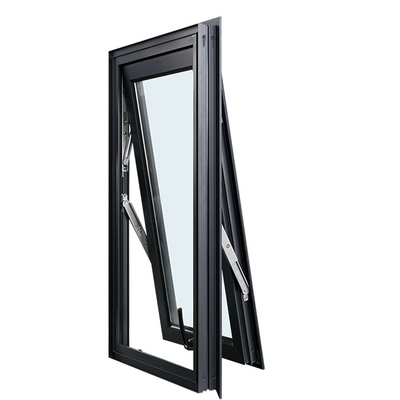

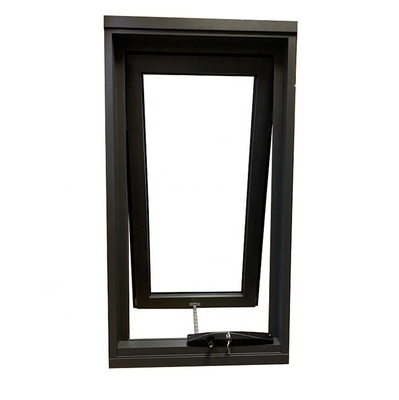

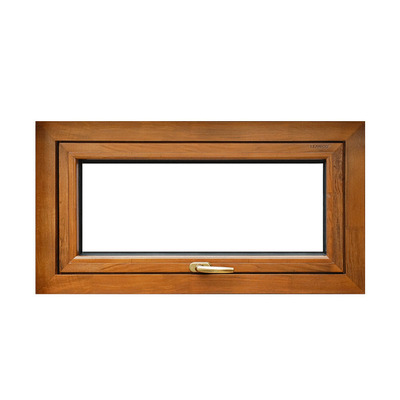

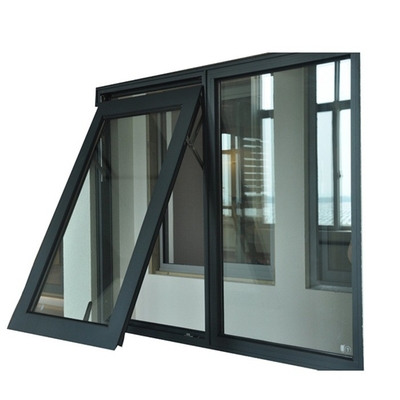

2022 hot sale top sound proof high quality hung crank window awning windows for house
1.Product Introduction
1. Aluminum alloy awning window profiles are divided into non-thermal break and thermal break aluminum aluminum alloy profiles. Thermal break aluminum alloy profile has better thermal insulation performance,it's K or U value can reach 1.0 to 1.5 W/M2k.
2.Product Details
|
Profiles
|
series |
1. 6063-T5 high quality thermal break aluminium profiles 2. 6063-T5 high quality non-thermal break aluminium profiles Commonly used series:45/50mm: 50series max-glass-thickness:22mm |
|
Thickness |
0.8/1.0/1.2/1.4/1.8mm |
|
|
|
color |
Brown dark greylight grey blackstar black |
|
Glass |
Types |
Low-e glassfrosted glazing grey/blue/green tinted glass,etc. Double tempered glazing:5+12A+5,6+12A+6 Single tempered d glazing:6,8,10,12... Laminated glass:6.38,10.76,10.38... |
|
Thickness |
4-19mm. |
|
|
color |
clear/super clear/ tinted blue/green/coffee brown/gray |
|
|
Hardware |
Brand:Germany brandAustralia brandChina brand Aluminum alloy top hung window: Handle lock+transmission rod+hinge+limit stopper+EPDM sealing strip+invisible screen Aluminum alloy middle hung window: Handle lock+transmission rod+hinge+limit stopper+ EPDM seal strip +invisible screen Aluminum alloy bottom hung window: Handle lock+transmission rod+hinge+limit stopper+ EPDM seal strip +invisible screen |
|
|
Mesh |
Stainless steel security meshAluminum security mesh Fiberglass flyscreenRetractable flyscreen |
|
|
Finish |
Powder coating Anodized Electrophoresis Wood grain |
|
|
Advantages |
1. Large openable area for maximising ventilation 2. Wide sash profile creates an appealing ‘picture frame’ effect 3. Flush-faced external profile for shedding dust and rain 4. Internally fitted screens 5. Continuous seal system provides excellent weatherproofing and acoustic (noise reducing) properties |
|
3.Profile Details
|
Profiles |
1.Non-thermal break aluminum profiles 3. Frame: 6063/6065 and different aluminum profiles produced by our own factory |
|
Non-thermal break aluminum awning window 1.Common series:45/50mm 2. the biggest glass thickness:22mm 3.The profile thickness: 0.8/1.0/1.2/1.4/1.8mm |
|
|
Thermal break aluminum awning window 1.Common series: 50/70/80mm 2. the biggest glass thickness:3-39mm 3. The profile thickness: 1.2/1.4/1.6/2.0mm |
|
|
Color: Silver oxide, electrophoretic champagne,spraying white/dark grey/ light grey/coffice/brown/red/black, wood grain,others,customized |
|
|
Surface Treatment |
1.Spraying 2.Anodizing 3.Electrophoresis 4.Wood grain transfer 5.Coating |
4.Glass Details
|
Glass |
Types |
Low-e glassfrosted glazing grey/blue/green tinted glass,etc. 1. Double tempered glazing:5+12A+5,6+12A+6 2. Single tempered d glazing:6,8,10,12... 3. Laminated glass:6.38,10.76,10.38... |
|
|
Thickness |
3mm/4mm/5mm/6mm/8mm/10mm/12mm/6.38mm/8.38mm /10.38mm/10.76mm/12.76mm/11.14mm/4mm+6air+4mm/5mm+6air+5mm /5mm+9air+5mm/5mm+12air+5mm/6mm+6air+6mm /6mm+9air+6mm/6mm+12air+6mm |
|
|
color |
clear/super clear/ tinted blue/green/coffee brown/gray |
5.Hardware Accessories
6.Product Parameters
|
Item |
Parameter |
Item |
Parameter |
|
K/U (insulation) |
<1.1 |
Glass thickness/mm |
3-30 |
|
Airtightness/m3/(m2.h) |
≤0.5 |
Profile Width/mm |
50-135 |
|
wind pressure/KPa |
≥5.0 |
Sounds insulation |
RW ≥ 120 dB |
7.Processing Procedure
Aluminum top-hung window: blanking - assembly angle - glue - EPDM sealing strip - weather strip -installing glass bead and glass -installing hinge - installing handle lock and transmission rod / ”7” handle lock
8.Quality Control
Quality inspection:
1. Raw material quality testing: the color, thickness and strength of profiles will be checked after the profiles arrive at the factory. After the glass to the factory, the color and thickness of the glass will be checked again, and the sealing performance of hollow glass will be checked. Hardware color will be checked and tests how well the hardware works.
2. In the production process, there will be special quality inspectors to check each process of production.
3. After the product is finished, the group corner, sealing, size, use effect and so on will be tested
9.Product Package
Product packaging:
1. Stretch film packaging
2. 5 carton packaging
3. Fumigation-free wooden frame packaging
4. Packed in wooden cases with fully enclosed and fumigation-free plywood.
Different packing methods can be applied to FCL and LCL.
10.Project Case
11.Customer Feedback
12.Company Profile
Founded in 2009, Shandong Super Window House Co., Ltd is a first-class comprehensive service provider of high-end doors and windows and a leading brand of aluminum & PVC doors and windows in China. We have three layers production workshop. Produce 3000 square meters aluminum doors and windows, 3000 square meters PVC doors and windows.
We can solve all the problems of your doors and windows in one stop. From beginning to end, we look to respect our clients by assisting in a courteous, professional manner.More experience, more professional, better quality, competitive price, and durable service.
13.FAQ
Q1:How can I get the price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote."
Q2:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Q3:What is your lead time?
A:It depends on the order quantity and the season you place the order. -Usually we can ship within 10-15 days for small quantity, and about 30 days for large quantity."
Q4:What is your payment term?
A:T/T in advance for sample, TT 40% in advance, balance before shipment for bulk order
Q5:What is the shipping method?
A:Support DHL,UPS,TNT,Fedex and other express services.
Q6:How do you make our business long-term and good relationship?
A:-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
