Product Details:
|
| Frame Material: | Aluminum Alloy | Opening Pattern: | Horizontal |
|---|---|---|---|
| Screen Netting Material: | Stainless Steel/Nylon/Fiberglass/Plastic/King Kong | Warranty: | More Than 5 Years |
| Material: | Aluminum Alloy, Aluminum Alloy+Glass+Accessories | Feature: | Magnetic Screen, Folding Screen |
| Open Style: | Sliding | Function: | Soundproof |
| After-sale Service: | Return And Replacement, Onsite Inspection, Online Technical Support, Onsite Training, Onsite Installation, Free Spare Parts | Project Solution Capability: | Total Solution For Projects |
| Application: | Workshop/Laundry/Farmhouse/Supermarket/Courtyard | Design Style: | Modern |
| Curtain Type: | Sliding/Houver/Casement/Roller Shutter | Product Name: | Aluminum Sliding Window |
| Glass Type: | Single\double\tempered\tinted\low-e\reflective | Glass Color: | Color Customized/Tinted/Tea Color/Coffee Brown |
| Window Type: | Aluminum Alloy Glass Sliding Window | Profile Surface Treatment: | Finished/Power Coating/Fluorocarbon Spraying |
| Size: | Requirement Customised/Client Specification | Hardware: | Chinese Brand |
| Advantage: | No Deformation/Heatproof/Durable | Packing: | Wood Crate/Multi-layers Protection Packaging/Wood Crate Box |
| Port: | QINGDAO,TIANJIN,GUANGZHOU,SHENZHEN |

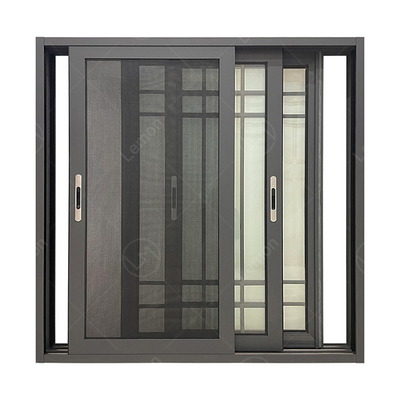

2023 New Arrival Unbreakable Frame Flush Handle Double Glazed Sliding Window Price Philippines For Toilet
1.Product Introduction
Aluminum alloy sliding window has four types: anodic oxidation, surface electrophoresis, powder coating and wood grain transfer, fluorocarbon spray works best.
| Item | aluminium sliding Window |
| Profiles | 1.6063-T5 High Quality thermal break aluminium profiles. |
| Glass | 1.Double toughened glazing:5mm+9A+5mm,5mm+12A+5mm;5mm+15A+5mm;5mm+20A+5mm |
| Hardware | 1. German brand: Roto, Hopo |
| Mesh | Stainless steel security mesh |
| Finish | 1.Powder Coating |
| Sounds insulation: Rw≥30 dB Wind pressure resistance: 4500 pa Air permeation resistance: 70/150 Water resistance: 450Pa/600Pa | |
| Packaging | Plywood Pallet+ Air bubble film+ plastic film As Per your specific requests |
| Warranty | 10 Years |
2.Product Details
| Profiles | 1.Non-thermal break aluminum profiles 3. Frame: 6063/6065 and different aluminum profiles produced by our own factory |
| Non-thermal break aluminum sliding window 1.Comm series:60/70/80mm 2.the biggest glass thickness of 70: 16mm 3.the biggest glass thickness of 80:19mm 4. The profile thickness:0.6/0.8/1.0/1.2/1.4mm | |
| Thermal break aluminum sliding window 1. commom series: 80mm 2.the biggest glass thickness :3-22mm 3. The profile thickness: 1.2/1.4/2.0mm | |
| Color: Silver oxide, electrophoretic champagne,spraying white/dark grey/ light grey/coffice/brown/red/black, wood grain,others,customized | |
|
| Surface Treatment: 1.Spraying 5.Coating |

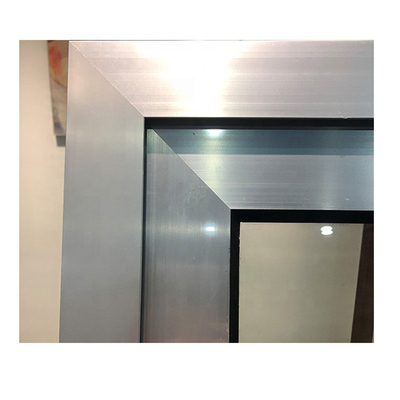

3.Profile Details
4.Glass Details
| Glass | Types | Low-e glass\frosted glazing\ grey/blue/green tinted glass,etc. 1. Double tempered glazing:5+12A+5,6+12A+6 2. Single tempered d glazing:6,8,10,12... 3. Laminated glass:6.38,10.76,10.38... |
| Thickness | 3mm/4mm/5mm/6mm/8mm/10mm/12mm/6.38mm/8.38mm /10.38mm/10.76mm/12.76mm/11.14mm/4mm+6air+4mm/5mm+6air+5mm /5mm+9air+5mm/5mm+12air+5mm/6mm+6air+6mm /6mm+9air+6mm/6mm+12air+6mm | |
| color | clear/super clear/ tinted blue/green/coffee brown/gray |
5.Hardware Accessories
6.Product Parameters
| Item | Parameter | Item | Parameter |
| K/U (insulation) | <1.1 | Glass thickness/mm | 3-30 |
| Airtightness/m3/(m2.h) | ≤0.5 | Profile Width/mm | 50-135 |
| wind pressure/KPa | ≥5.0 | Sounds insulation | RW ≥ 120 dB |
7.Processing Procedure
Aluminum alloy sliding window: blanking - assembly angle/screw connection - glue - EPDM sealing strip - weather strip -installing glass - installing pulley - installing hardware (crescent lock/touch lock/hook lock/handle lock,etc.)
8.Quality Control
Quality inspection:
1. Raw material quality testing: the color, thickness and strength of profiles will be checked after the profiles arrive at the factory. After the glass to the factory, the color and thickness of the glass will be checked again, and the sealing performance of hollow glass will be checked. Hardware color will be checked and tests how well the hardware works.
2. In the production process, there will be special quality inspectors to check each process of production.
3. After the product is finished, the group corner, sealing, size, use effect and so on will be tested
9.Product Package
1. Stretch film packaging
2. 5 carton packaging
3. Fumigation-free wooden frame packaging
4. Packed in wooden cases with fully enclosed and fumigation-free plywood.
Different packing methods can be applied to FCL and LCL.
10.Project Case
11.Customer Feedback
12.Company Profile
Shandong Super Window House Co., Ltd is a collection of design, production, domestic engineering, export trade, foreign installation in one of the large doors and Windows construction engineering enterprises, with 11 years of experience in doors and Windows export.
We do excellent in assisting customers to design,manufacture and install windows and doors for their house,office, villa, factory and Airport,etc.After sales, We will always provide good service, like how to fix hardware and how to install windows and doors.We will gladly evaluate your needs and recommend the arrangement that is best for your requirements.
13.FAQ
Q1.who are we?
A:Shandong Super Window House Co., Ltd is a Large doors and windows construction engineering enterprise which sets design, production, domestic engineering, export trade, foreign installation in one. With 11 years experience on doors and windows export, we are involved in many projects in more than 100 countries and areas all over the world.
Q2.how can we guarantee quality?
A:Always a pre-production sample before mass production.
Always final inspection before shipment.
Q3. What kind of products do we have?
A:All kinds of aluminum and PVC doors and windows.
Q4. What is your quality guarantee?
A:10 Years of Quality Guarantee for the Aluminum Window&Door Frame.1 Year of Quality Guarantee for the Hardware Fittings.
Q5. How long will your delivery time be?
A:Delivery time is 10-15 days
