Unbreakable Sound Proof Impact Aluminum Casement Glass Windows for Thermal Insulation

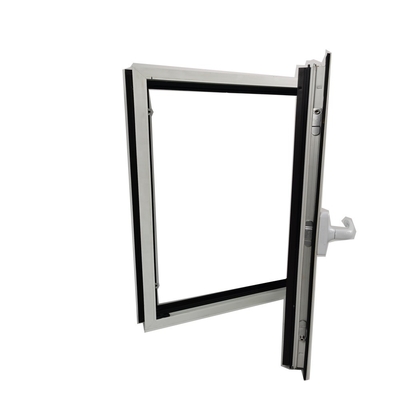

Large Image : Unbreakable Sound Proof Impact Aluminum Casement Glass Windows for Thermal Insulation

Product Details:

Place of Origin:	Shandong, China
Brand Name:	super window furniture
Model Number:	Aluminium Casement Windows

Payment & Shipping Terms:

Minimum Order Quantity:	10 units
Price:	$46.00/units 10-99 units
Packaging Details:	Stretch film + bubble bag + carton<br>Stretch film + bubble bag + wooden box<br>Stretch film + bubble bag<br>Stretch film + paper corner protection
Supply Ability:	6000 Bag/Bags per Week

Contact Now

Unbreakable Sound Proof Impact Aluminum Casement Glass Windows for Thermal Insulation

Description

Frame Material:	Aluminum Alloy	Opening Pattern:	VERTICAL
Screen Netting Material:	FiberGlass	Warranty:	More Than 5 Years
Material:	Aluminum Alloy	Feature:	Magnetic Screen, Folding Screen
Open Style:	Swing	Function:	Anti-Theft
After-sale Service:	Return And Replacement, Onsite Inspection, Online Technical Support, Onsite Training, Onsite Installation, Free Spare Parts	Project Solution Capability:	Total Solution For Projects
Application:	Workshop	Design Style:	Modern
Curtain Type:	Louver	Product Name:	Aluminium Casement Windows
Hardware:	Chinese Top Brand	Glass Color:	Clear\gray\blue\green\brown
Profile:	6063-T5 Aluminum Alloy Profile	Glass Type:	Single\double\tempering\floating\stained\low-e
Sealing System:	Silicone Sealant	Style:	Simple Aluminum Window
Packing:	Wooden Case	Window Type:	Aluminum Alloy Glass Folding Window
Design:	Customers'requirements

Double Class Unbreakable Sound Proof Impact Open To Inside Aluminum Casement Large Glass Windows

Products Description

Aluminum alloy casement window is made of aluminum alloy building profiles,it has better airtightness,large opening area,ventilation,thermal insulation,safety, anti-theft, windproof than sliding window.

Product details

Style	Aluminum Casement Window
Profile Brand	Chinese Top Brand
Profile	T6063-5 thermal break aluminum profile,1.2mm-2mm( depends on customer)
Surface Treatment	Anodized,Surface Electrophoresis,Powder Coating and Wood Grain Transfer
Glass	Color: Grey,White,Tea,Black,Customized design color,etc. Types:Single or Double Tempered Glass,Laminated Glass,Low-E Glass,hollow Glass,etc.
Hardware	German Top Brand “ROTO“,Australian “Doric”,Chinese Top Brand,Coach,Kin Long
Screen	King Kong,Retractable Screen,invisible Screen,Stainless Steel Mesh,etc.
Rubber Strip	Australia Standard EPDM
Quality Control	CE/AS2208/IGCC/AS2047/AAMA/CSA Certification
Guarantee period	10 years warranty,
Application places	Residential, commercial buildings, schools, hospitals, etc
Delivery Time	35 Days,Delivery by DHL/TNT(Plastic Film, EPE Cloth,Wood Case)

Hardware

Aluminum alloy interior casement window:
Handle lock +multi-point lock + transmission rod+ hinge + EPDM sealing strip+ wind bracing + external fixed flynet.
“7” form handle+ hinge+EPDM sealing strip+ wind bracing + external fixed flynet.
Aluminum alloy exterior casement window:
handle +multi-point lock + transmission rod + hinge+EPDM sealing strip+ limit stopper + interior invisible flynet.
“7” form handle+hinge+EPDM sealing strip+ wind bracing +interior flynet
American aluminum alloy exterior casement window:
Chain winder+ lock+hinge+EPDM sealing strip+ interior invisible flynet.

Profiles	1.Non-thermal break aluminum profiles 2.Thermal break aluminum alloy profiles 3. Frame: 6063/6065 and different aluminum profiles produced by our own factory
		Non-thermal break aluminum casement window 1.Common series: 45/50mm 2. the biggest glass thickness of 50:22mm 3.The profile thickness:0.8/1.0/1.2/1.4/1.8mm
		Thermal break aluminum casement window 1.Common series: 50/70/80mm 2. the biggest glass thickness:3-39mm 3. The profile thickness: 1.2/1.4/1.6/2.0mm
		Color: Silver oxide, electrophoretic champagne,spraying white/dark grey/ light grey/coffice/brown/red/black, wood grain,others,customized
Surface Treatment	1.Spraying 2.Anodizing 3.Electrophoresis 4.Wood grain transfer 5.Coating

Profile details

Aluminum alloy casement window profiles are divided into non-thermal break and thermal break aluminum alloy profile.The main difference is the thermal break aluminum alloy profile has better thermal insulation performance. Thermal break aluminum window and door's K or U value can reach 1.0 to 1.5 W/M2k.The surface treatment has four
types: anodize oxidation, surface electrophoresis, powder coating and wood grain transfer, fluorocarbon spray works best.

Glass types are Low-e glass,frosted glazing and tinted glass,etc. Especially,double tempered glazing is 5mm+12A+5mm,6mm+12A+6mm.Single tempered glazing is 6mm, 8mm,10mm, 12mm...Laminated glass is 6.38,10.76,10.38...Glass thickness is 4-19mm.Glass color has clear,super clear,tint blue/ green/coffee brown/gray...

Glass	Types	Laminated Glass/ Double Glazing/ Double Glazed/ Tempered Glazing/ Tempered Glazed/ Safety Glass/ Anti-Theft Glass/Fire-Proof Glass ，High Temperature Ink Printing Glass，Hurricane Proof Glass
		Thickness	3mm/4mm/5mm/6mm/8mm/10mm/12mm/6.38mm/8.38mm /10.38mm/10.76mm/12.76mm/11.14mm/5mm+6air+5mm /5mm+9air+5mm/5mm+12air+5mm/6mm+6air+6mm /6mm+9air+6mm/6mm+12air+6mm
		color	clear/super clear/ tinted blue/green/coffee brown/gray

More Products

Factory

Shandong Super International Trade Co., Ltd has years of experience in manufacturing, quality control and trade.The main products are aluminum alloy doors & windows and PVC doors &Windows.After exporting many windows and doors to international customers Like Europe and America, Australia, South America, Southeast Asia and some parts of Africa. With advanced production equipment, our product meet the highest quality requirements as stipulated in EU CE certification, US certification, Australia AS2208 and AS2407 certification and our stringent quality control system.

Aluminum alloy casement window: blanking -assembly angle/screw connection - glue - EPDM sealing strip - weather strip -installing glass - installing pulley - installing hardware (crescent lock/touch lock/hook lock/handle lock,etc.)

product line

Aluminum casement window: cutting profiles - steel lining - welding profiles - Angle cleaning - hardware installation - sealing rubber strip installation - glass installation - sealant and rubber strip - finished assembly the process of making a casement window: First, cut the profile. According to the design requirements and size specifications, the profiles are precisely cut. Then, weld the profile. Through high-temperature welding technology, each cut profile is connected together to form a complete window frame structure.

Then came the hardware. As required, install various hardware accessories (such as hinges, locks, etc.) on the window frame to achieve opening, closing and locking functions. This is followed by the installation of sealing strips. Attach a sealing strip to the inner edge of the window frame to prevent water vapor penetration and enhance sound insulation. Then the glass is installed. Place the pre-prepared glass plate in the window frame, and use professional tools to fix the position relationship between the glass and the window frame. After completing the above steps, it is necessary to apply sealant and rubber strips to further strengthen and waterproof treatment. This can effectively prevent rain or air from seeping into the room through the gap. Finally, the finished product can be assembled to obtain the final product

1.Raw material quality testing: the color, thickness and strength of profiles will be checked after the profiles arrive at the factory. After the glass to the factory, the color and thickness of the glass will be checked again, and the sealing performance of hollow glass will be checked. Hardware color will be checked and tests how well the hardware works.

2.In the production process, there will be special quality inspectors to check each process of production.
3. After the product is finished, the group corner, sealing, size, use effect and so on will be tested

Custom &Feedback

During these years of development, we have received praise from many customers. We are grateful for the support these customers have given us. Customer recognition and support for our products is the driving force for our continuous progress.

Team:

Our team has strong execution and innovation ability, we are able to quickly respond to customer needs and feedback, and constantly improve and optimize our products and services. We are constantly exploring new business models and business opportunities to provide more choice and value to our customers.

Certifications

Certification

The product has passed the CE, AS2047, AAMA and CSA certification.
The glass has passed the CE, AS2208 and US IGCC certification.
