Product Details:
|
| Frame Material: | Aluminum Alloy | Opening Pattern: | Horizontal |
|---|---|---|---|
| Screen Netting Material: | FiberGlass | Warranty: | More Than 5 Years |
| Material: | Aluminum, Aluminum Alloy+Tempered Glass | Feature: | Magnetic Screen, Folding Screen |
| Open Style: | Sliding | Function: | Anti-Theft |
| After-sale Service: | Return And Replacement, Onsite Inspection, Online Technical Support, Onsite Training, Onsite Installation, Free Spare Parts | Project Solution Capability: | Total Solution For Projects |
| Application: | Farmhouse, Daily Life | Design Style: | Modern |
| Name: | Aluminum Sliding Winodw | Color: | Customized Colors/White/Black/Brown |
| Size: | Requirement Customised/Client Specification | Hardware: | China Top Brand/Australia Doric |
| Glass: | Triple/Low-E Double Glass | Surface Treatment: | 1.Powder Coated/Anodizing/Electrophoresis |

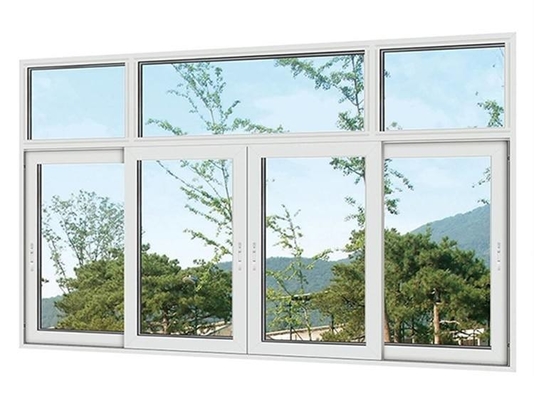

China factory price modern aluminum sliding window with 4 panels tempered glass window replacement
1.Production In troduction
1. Aluminum alloy sliding window is composed of profile hardware accessories and glass. For the profiles, they are divided into non-thermal break and thermal break aluminum alloy profile. For hardware, its combinations including crescent/touch/hook lock+roller pulley+EPDM sealing strip+wind block+anti-theft block+flynet. For Glass, its variety is diverse, glass thickness:3-19mm.Customized is acceptable.
| Style | Aluminum Alloy Sliding Window | |
| Profile Brand | Chinese Top Brand,1.2mm/1.4mm/2.0mm/3.0mm Wall Thickness | Customized |
| Profile | Aluminum Profile Or Thermal Break Profile White Color,Champagne Color Or Woodgrain Color | Customized |
| Surface Treatment | Anodizing,Power Coating,PVDF Coating,Electrophoresis,Etc | Customized |
| Glass | Single Or Double Tempered Glass,Laminated Glass,Low-E Glass,Etc | Customized |
| Hardware | German Top Brand ‘ROTO’ Or Australian ‘Doric’,Chinese Top Brand | Customized |
| Screen | Retractable Screen,Accordion Screen,Folding Screen,Etc | Customized |
| Rubber Strip | European Standard EPDM | Customized |
| Free Sample | Ready Within 5 Days,Delivery By DHL/TNT | |
| Quality Control | As2047/As2208/Ce/Soccap/Iso9001:2008 | |
2.Product Details
| Profiles
| series | 1. 6063-T5 high quality thermal break aluminium profiles 2. 6063-T5 high quality non-thermal break aluminium profiles Commonly used series:60/70/80mm: 70series max-glass-thickness:16mm 80series max-glass-thickness:19mm |
| Thickness | 0.6/0.8/1.0/1.2/1.4mm | |
| color | Brown\ dark grey\light grey\ black\star black | |
| Glass | Types
| Low-e glass\frosted glazing\ grey/blue/green tinted glass,etc. 1. Double tempered glazing:5+12A+5,6+12A+6 2. Single tempered d glazing:6,8,10,12... 3. Laminated glass:6.38,10.76,10.38... |
| Thickness | 4-19mm. | |
| color | clear/super clear/ tinted blue/green/coffee brown/gray | |
| Hardware | Germany brand\Australia brand\China brand Accessories combination 1: Crescent lock +roller pulley +EPDM sealing strip + wind block + anti-theft block + flynet 2: touch lock +roller pulley +EPDM sealing strip + wind block + anti-theft block + flynet 3: hook lock +roller pulley +EPDM sealing strip + wind block + anti-theft block + flynet | |
| Mesh | Stainless steel security mesh\Aluminum security mesh Fiberglass flyscreen\Retractable flyscreen | |
| Finish | Powder coating \ Anodized \ Electrophoresis \ Wood grain | |
| Advantages | 1. low cost or cheap price 2. various colors 3. high strength, acid and alkali resistance, corrosion resistance, 4. long service life 5. good anti-theft 6. good thermal insulation 7. easy installation,easy cleaning and easy repairing 8. different quality grades to choose from | |
3.Profile Details
| Product Name | window frames designs aluminum sliding |
| Material | 6063, 6061, 6005, 6060 T5/T6 |
| Color | White, Bronze, Grey, Black, Golden, Wooden, Silver etc. |
| Standard | GB5237-2008, ISO9001, ISO14001 |
| Characteristic | Strong, stylish, durable, corrosion-resistant |
| Shape | I, U, T, C, Z, L, H, square, round, flat, hollow, t-slot, and other complicated shapes by custom design |
| Finish | Mill / Anodizing (oxidation) / Sand blasting / Powder Coating / Electrophoresis / PVDFCoating / Wood effect. |
4. Glass Details
| Glass | Types | Laminated Glass/ Double Glazing/ Double Glazed/ Tempered Glazing/ Tempered Glazed/ Safety Glass/ Anti-Theft Glass/Fire-Proof Glass,High Temperature Ink Printing Glass,Hurricane Proof Glass |
| Thickness | 3mm/4mm/5mm/6mm/8mm/10mm/12mm/6.38mm/8.38mm /10.38mm/10.76mm/12.76mm/11.14mm/5mm+6air+5mm /5mm+9air+5mm/5mm+12air+5mm/6mm+6air+6mm /6mm+9air+6mm/6mm+12air+6mm | |
| color | clear/super clear/ tinted blue/green/coffee brown/gray |
5. Hardware Accessories
6.Product Parameters
| Item | Parameter | Item | Parameter |
| K/U (insulation) | <1.1 | Glass thickness/mm | 3-30 |
| Airtightness/m3/(m2.h) | ≤0.5 | Profile Width/mm | 50-135 |
| wind pressure/KPa | ≥5.0 | Sounds insulation | RW ≥ 120 dB |
7.Processing Procedure
Aluminum alloy sliding window: blanking - assembly angle/screw connection - glue - EPDM sealing strip - weather strip -installing glass - installing pulley - installing hardware (crescent lock/touch lock/hook lock/handle lock,etc.)
8.Quality Control
Quality inspection:
1. Raw material quality testing: the color, thickness and strength of profiles will be checked after the profiles arrive at the factory. After the glass to the factory, the color and thickness of the glass will be checked again, and the sealing performance of hollow glass will be checked. Hardware color will be checked and tests how well the hardware works.
2. In the production process, there will be special quality inspectors to check each process of production.
3. After the product is finished, the group corner, sealing, size, use effect and so on will be tested
9.Product Package
Product packaging:
1. Stretch film packaging
2. 5 carton packaging
3. Fumigation-free wooden frame packaging
4. Packed in wooden cases with fully enclosed and fumigation-free plywood.
Different packing methods can be applied to FCL and LCL.
10.Project Case
11.Customer Feedback
12.Company Profile
Shandong Super Window House Co., Ltd has been dealing with windows and doors for over 11 years. Our products have a high reputation as being one of the China's top 10 best-selling brands because of our adequate experience in producing and processing.
After many years of development, Super Window House became a well-known brand in domestic market and annual sale held a top rank in this line for many years. Our customers come from all over the world like Europe and America, Australia, South America, Southeast Asia and some parts of Africa.
13.FAQ
Q1: All these doors and windows come with frames to mount on walls?
A: Yes, all doors and windows are finished with frames and hardware together, you can just install to the wall.
Q2: The glass will be broken after I received the goods?
A: The glass would be broken only because suffering from the impact force, but it won’t break itself.
Q3: UPVC/PVC and aluminum profile, which is better?
A: It cannot say which one is better, they have both advantages.UPVC/PVC is good performance for sound and heat insulation.Aluminum is harder and strong for security. Aluminum also have thermal break profile to insulate heat.
Q4: What are your payment terms?
A: Usually we accept T/T, 30% down payment and pay off balanced payment before shipping. If you want to pay by L/C or west union we also can accept now.
Q5: How about your delivery time?
A: Delivery time depends on your order quantity, some special color need long time get material.
But usually the delivery time is around 10-15days for common color and profile.
Q6. What about your packages ?
A. Inner EPE paper packing, exterior with wooden frame crate box.We have been exporting lots of products overseas, no any clients make any complains on our packages.
