Product Details:
|
| Frame Material: | Aluminum Alloy | Opening Pattern: | VERTICAL |
|---|---|---|---|
| Screen Netting Material: | Stainless Steel | Warranty: | More Than 5 Years |
| Material: | Stainless Steel, Aluminum Alloy+Glass+Accessories | Feature: | Magnetic Screen, Folding Screen |
| Open Style: | Folding | Function: | Anti-Theft |
| After-sale Service: | Return And Replacement, Onsite Inspection, Online Technical Support, Onsite Training, Onsite Installation, Free Spare Parts | Project Solution Capability: | Total Solution For Projects |
| Application: | Supermarket | Design Style: | Modern |

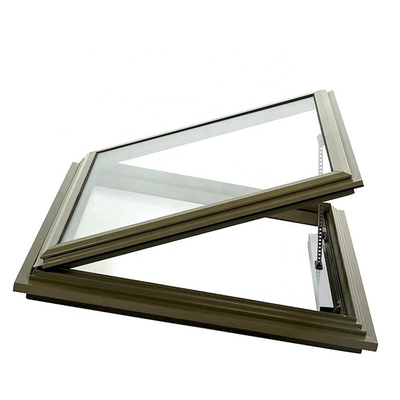

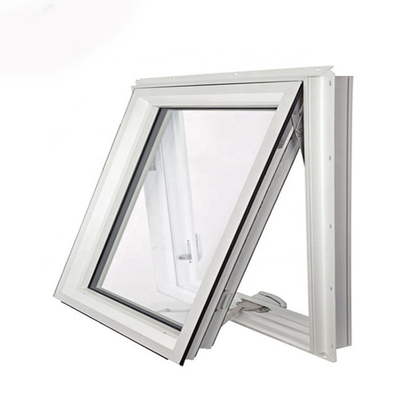

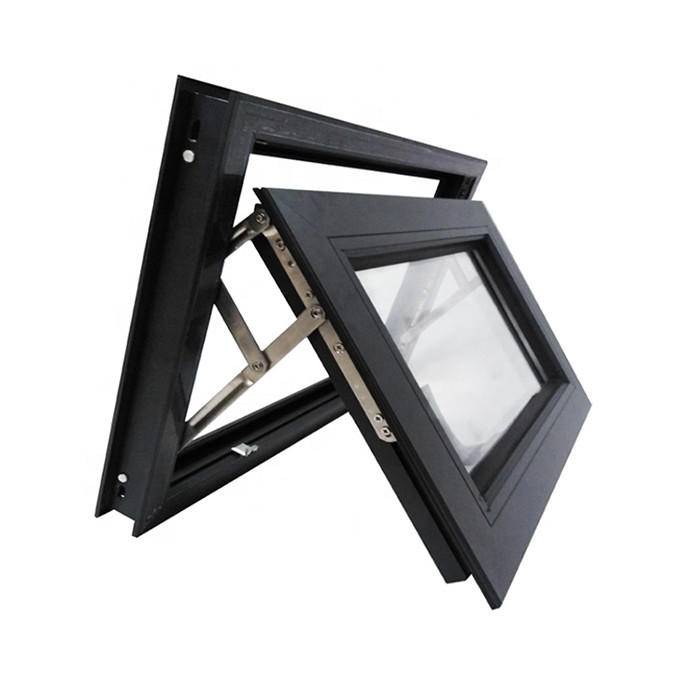

| Curtain Type: | Hanging | Product Name: | Awning Window |
| Color: | Customized Colors | Glass: | Double Tempered Glass |
| Hardware: | China Top Brand | Glass Type: | Single\double\tempering\floating\stained\low-e |
| Size: | Customized Size | Advantage: | Heat Insulation.Waterpfoof |
| Type: | Window Frames | Open Type: | Horizontal Open |
| Port: | QINGDAO,TIANJIN,NINGBO,SHAGNHAI,GUAGNZHOU,SHENZHEN |
Profiles | series | 1. 6063-T5 high quality thermal break aluminium profiles 2. 6063-T5 high quality non-thermal break aluminium profiles Commonly used series:45/50mm: 50series max-glass-thickness:22mm | |
Thickness | 0.8/1.0/1.2/1.4/1.8mm | ||
color | Brown\ dark grey\light grey\ black\star black | ||
Glass | Types | Low-e glass\frosted glazing\ grey/blue/green tinted glass,etc. Double tempered glazing:5+12A+5,6+12A+6 Single tempered d glazing:6,8,10,12... Laminated glass:6.38,10.76,10.38... | |
Thickness | 4-19mm. | ||
color | clear/super clear/ tinted blue/green/coffee brown/gray | ||
Hardware | Brand:Germany brand\Australia brand\China brand Aluminum alloy top hung window: Handle lock+transmission rod+hinge+limit stopper+EPDM sealing strip+invisible screen Aluminum alloy middle hung window: Handle lock+transmission rod+hinge+limit stopper+ EPDM seal strip +invisible screen Aluminum alloy bottom hung window: Handle lock+transmission rod+hinge+limit stopper+ EPDM seal strip +invisible screen | ||
Mesh | Stainless steel security mesh\Aluminum security mesh Fiberglass flyscreen\Retractable flyscreen | ||
Finish | Powder coating \ Anodized \ Electrophoresis \ Wood grain | ||
Advantages | 1. Large openable area for maximising ventilation 2. Wide sash profile creates an appealing ‘picture frame’ effect 3. Flush-faced external profile for shedding dust and rain 4. Internally fitted screens 5. Continuous seal system provides excellent weatherproofing and acoustic (noise reducing) properties | ||
